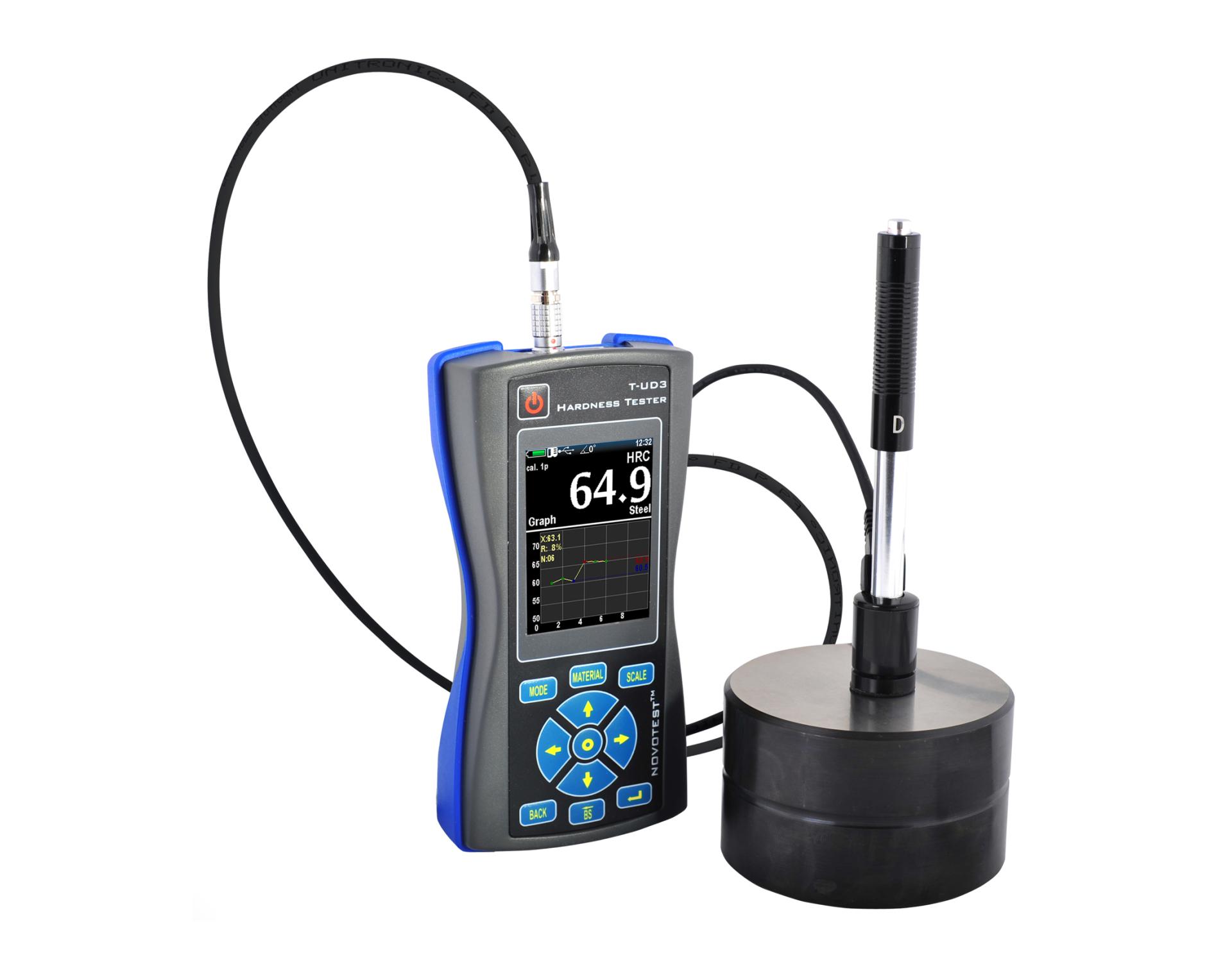

NOVOTEST T-D3 Leeb Sertlik Ölçüm Cihazı

Bilyalı sertlik ölçüm cihazımız Leeb Yöntemine göre yüksek hassasiyetli ölçüm yaparak otomatik olarak HRC, HB, HV, HRB, MPa birimlerine çevirmektedir.

Leeb probe types D, DC, DL, C, D+15, E, G
Measuring range for steel HV:230~940; HRC:20~70; HB:90~650. Tensile strength, MPa 370~1740
Measuring accuracy HV:±3%HV; HRC:±1.5%HRC; HB:±3%HB
Standards ASTM A956, ASTM E140
Indenter Hardened ball (Leeb)
Measuring direction Any direction 360°
Data storage Limited only by the memory card up to 32Gb
Communication Upload data to PC and export as a spreadsheet (USB cable and software included )
Hardness scale
  • HRC, HB, HV, HRB, MPa
  • Additional custom scales for calibration
Materials
  • Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
  • Additional custom materials for calibration
Data display Angle (Leeb), Single test result, Max, Min, Average of tests, Number of tests, Deviation, Var. coeff, Histogram, Signal and Smart Mode (Filter of incorrect measurements).
Indication Color LCD display (320×240)
Operating environment Temperature:-20°C~40°C; Humidity: 30%~80%R.H.
Power supply DC 4,5V (3 pcs batteries AA)
Instrument dimensions 160x75x30mm
Net weight Approx. 0.3kg (Without probe)
Battery life Approx. 10 hours.
