ELOTEST M6 Portatif Eddy Current Test Cİhazı

Eddy CUrrents
1 channel with 2 separate receiver entries for
the operation of combined difference/absolute
probes for distance compensation or the
separate evaluation of the difference and the
absolute probe in defect and grinding burn
inspection.
▷ Frequency range: 10 Hz - 12.5 MHz
▷ Output voltage: +/- 0.1 to +/- 5 Volt
▷ Output current: 300 mA
▷ Filtering range: 0 Hz - 100 kHz
▷ Amplification: 0 db - 80 dB, no pre-amplifier
required
▷ Threshold: Line, Band, Box, Circle, FlatCircle
▷ Two parameter set multiplex (2 frequencies
etc.)
▷ Sensor multiplexer control (external sensor
Mux) for up to 256 sensors with two receivers,
Mux rate up to 125 KHz (only ELOTEST M6
Advance)

Casing, screen, etc

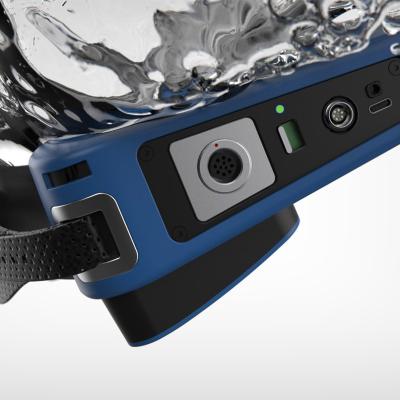

▷ Full IP67 casing, also with open connectors
▷ Dimensions approx. 233 x 169 x 78 mm
▷ The desktop stand has two operation angles
and has been optimized for curved and
plane surfaces.
▷ Screen size: 7 inch wide High Brightness IPS
display, resolution 1024 x 600 with LED background
lighting 800 cd
▷ Capacitive touch surface
▷ Three operating directions of the device:
right-hander vertical format, left-hander
vertical format and desktop horizontal
format
▷ Weight: approx. 1.2 kg including battery
▷ Integrated microphone and speakers for
VoiceMemo recordings
▷ Ambient light sensor for a longer battery life
in dark environments

Battery, performance
▷ Li-Ion standard battery, fully certified, no tool
required for replacement
▷ Battery life up to 8 hours, depending on the
application
▷ Table power unit for power supply and for
charging the battery in the device at the
same time
▷ OPTION: belt pack for an additional battery
for range extension or for reducing weight in
hand-held operation.
▷ OPTION: table charger unit for the battery
Connectivity
▷ Sensor adaptor for Rohmann standard
cables, new Rohmann cables for the ELOTEST
Accessory Bus, with a BNC plug for parametric
sensors. Can be replaced without tools.
Adaptors for external probes available on
request.
▷ IP67 power connection for table power unit
and battery in a belt pouch
▷ IP67 Ethernet connection, cable for standard
RJ45 available, Gigabit Ethernet
▷ IP67 USB-C style connection with USB-2 log
▷ IP67 3.5 mm socket for headphones, headsets
and microphones
▷ User accessible Micro-SD card slot in the
battery compartment for storing settings
and recordings
▷ User accessible standard USB connection
in the battery compartment for WiFi/Bluetooth
USB adaptor for an optional wireless
connection
▷ Free of charge PC-Client for mirroring the
user interface and for transmitting settings
and recordings to a computer connected via
Ethernet or a WiFi for documentation and
training purposes

Software characteristics of
ELOTEST M6
▷ Quick switch-over from one operating mode
to another: defect recognition, rotor inspection,
distance compensation
▷ Strip chart display with zoom, offline signal
modification and direct recording on a
MicroSD card
▷ C-SCAN recorder for rotor applications
▷ Waterfall chart for rotor applications
▷ Comment system with markers for all recorders:
text marker, voice memo marker
▷ PDF reports with comments
ELOTEST M6 Advance (additional
functions)
▷ Array mode for sensor arrays with up to 256
sensors
▷ Guided sensor calibration for arrays
▷ C-SCAN operation for arrays
▷ Harmonic wave evaluation for sorting tasks
