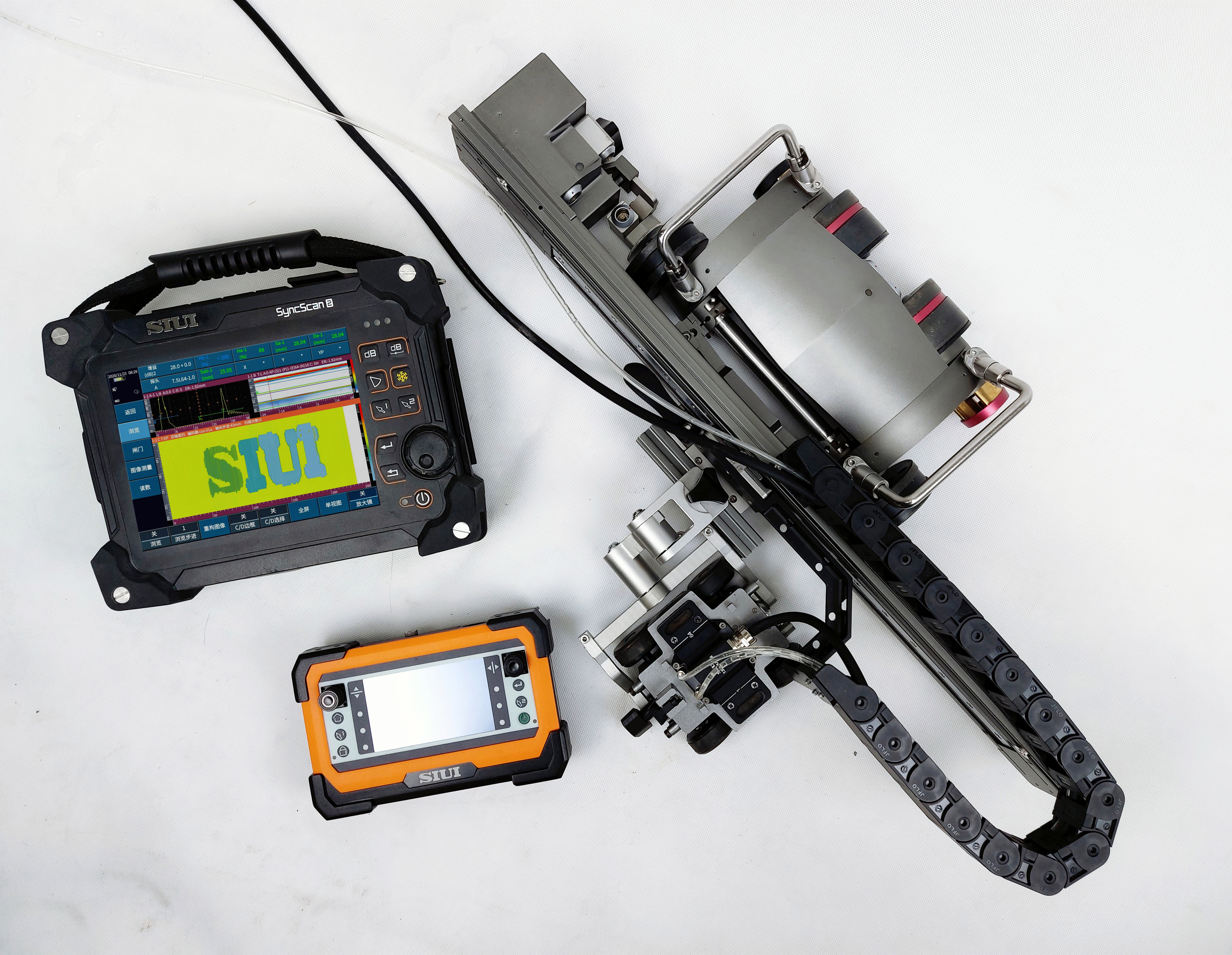

SyncScan 2 Phased Array ultrasonic flaw dedector

Conventional UT

Velocity+Zero Calibration/Angle Calibration/DAC/AVG(DGS)
Full screen A scan/Coordinates switch (sound path, depth,horizontal)
Surface compensation(xx+xxdB)/Auto freeze/Second leg color/Auto gain/Wave compare Wave filling/Peak Envelope/Screenshot
API/TCG/AWS/CSC/B Scan/Flat Weld Groove(RayTracing)/Crack Height Measurement
Probe Spectrum Analysis/Cineloop/BEA function(Backwall Echo Attenuator)

Phased Array


•  Standard functions: calibration wizard, PA groups function, BEA function(Backwall Echo Attenuator).

•  Optional functions: Simultaneous inspection ofPA & TOFD, flat weld solution, angel weld solution,pipe girth weld solution, corrosion solution, DAC curve.

TOFD




•  Standard functions: calibration wizard, measurement, image processing.
•  Optional functions: SAFT
